CWP Pull-Through Straighteners are furnished in 5 and 7 roll versions with capacities from .010-.375.  The Pull-thru straighteners are designed for easy mounting with servo feeders, and constructed for durable and dependable performance within their capacity range. When furnished with a new Servo Feed, they are meticulously factory mounted to ensure proper alignment in all planes. Straightener rolls are hardened and ground and mounted in anti-friction bearings. Upper straightener rolls in the pull-thru straightener are adjusted for straightening from the operator side of the machine by chain and sprocket or worm gear assemblies, dependant on model.  These Pull-Thru straighteners are used for removing coil set from the material, to enable smooth and accurate positioning in the die.

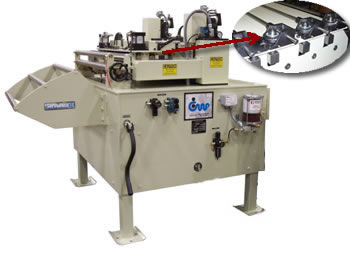

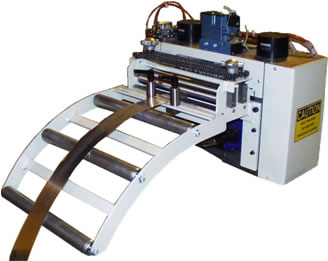

ServoMatic Servo Feed with SL5 series Straightener, the SL series pull-thru straighteners are designed to mount to the ServoMatic Servo Feed.

Model	Width	Thickness
SL5-6	6"	.078"
SL5-12	12"	.048"
Also available as a 7 Roll Straightener

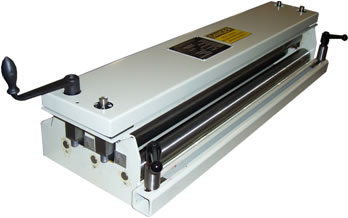

SSM5 Pull-Thru Straightener

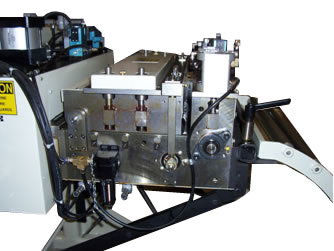

SM5 Pull-Thru Straightener with manual Pinch Rolls Mounted on a SMX Servo Roll Feeder

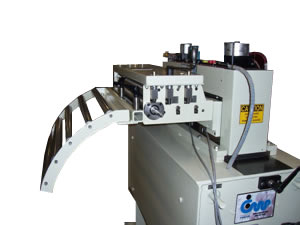

SM5 Pull-Thru Straightener with Powered Pinch Rolls, Pilot Lift Straightener Rolls and Air lift Pinch Rolls Mounted to a SMX servo feed

Model	Width	Std. Servo Cap.	HD Servo Cap.
SM5-6	6"	.125"	.156"
SM5-12	12"	.090"	.125"
SM5-18	18"	.078"	.093"
SM5-24	24"	.062"	.078"
SM5-30	30"	.048"	.062"
SM5-36	36"	.027"	.048"
Also available as a 7 Roll Straightener

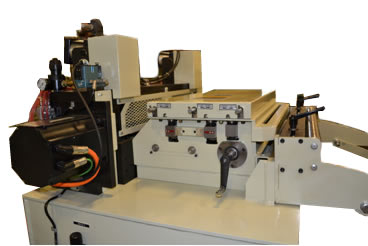

SXM5 Pull-Thru Straightener Mounted to a SMX H Servo Feeder with Powered Pinch Rolls, lift pinch Rolls and worm gear roll adjustment.

Model	Width	Thickness
SXM5-12	12"	.250"
SXM5-18	18"	.220"
SXM5-24	24"	.187"
SXM5-30	30"	.140"
SXM5-36	36"	.125"
Also available as a 7 Roll Straightener



SXH7 Pull-Thru Straightener with Manual Pinch Rolls Mounted to a SMX H Servo Feeder

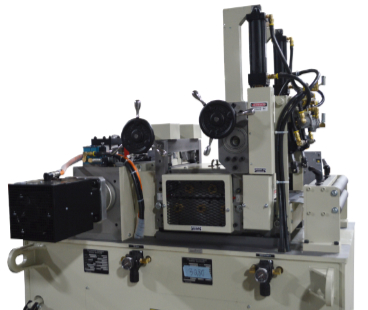

SXH5 Pull-Thru Straightener with Manual Pinch Rolls Mounted to a SMX H Servo Feeder

SXH5 Servofeed Pull-Thru Straightener Combination with Pneumatic Straightener Roll Pilot Release

Model	Width	Thickness
SXH5-12	12"	.375"
SXH5-18	18"	.331"
SXH5-24	24"	.312"
SXH5-30	30"	.280"
SXH5-36	36"	.250"
SXH5-42	42"	.187"
Also available as a 7 Roll Straightener



Available Options:

• • Manual Pinch Rolls
• • Powered Pinch Polls
• • Air Lift Pinch Rolls
• • Pneumatic and Hydraulic lift Straightener Rolls
• • Smooth Chrome Straightener Rolls
• • Matte Chrome Pinch Rolls
• • Pneumatic or Servo Straightener Roll Lift
