Coil Reels - Series 5, 6, 6.5

Series 5, 6, 6.5

CAPACITY :12,500 – 30,000 LBS.
MAX. WIDTHS : 24", 30", 36", 48", 60"
MAX. O.D. : 60" (72" O.D. Optional)

• Modulating drive
• Broad fabricated expansion arm mandrel. Drum segment mandrel (optional), standard on 6.5 Series
• Sliding wedge expansion mechanism
• Hydraulic expansion
• Air Brakes with regulator adjustment
• Motorized units: Dynamic braking resistors, non-contact laser loop control sensor, low volt probe controls (standard), other controls (optional), three-phase motors (standard)
• Fabricated drum mandrel (optional on 5R & 6R, standard on 6.5R)

Specifications

SERIES	Models Single	Models Double	Max. Weight	Max. Stock Width	Max. Coil O.D.	Expansion Range	Max. Speed (FPM)
5	5R-24	5RD-24	15,000	24”	60”	15.5 – 20.5”	100
	5R-36	5RD-36	15,000	36”	60”	15.5 – 20.5”	100
	5R-48	5RD-48	12,500	48”	60”	15.5 – 20.5”	100
6	6R-24	6RD-24	25,000	24”	60”	15.5 – 20.5”	150
	6R-36	6RD-36	20,000	36”	60”	15.5 – 20.5”	150
	6R-48	6RD-48	15,000	48”	60”	15.5 – 20.5”	150
	6R-60	6RD-60	12,500	60”	60”	15.5 – 20.5”	150
6.5	6.5R-36	6.5RD-36	30,000	36”	60”	19.5 – 24.5”	150
	6.5R-48	6.5RD-48	25,000	48”	60”	19.5 – 24.5”	150
	6.5R-60	6.5RD-60	20,000	60”	60”	19.5 – 24.5”	150

Top - Double end coil reel in production, Press feed line with 6R coil reel - bottom

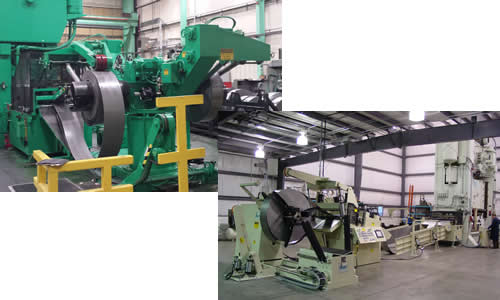

Above left, This compact coil line features a 5R-30 double end coil reel that is motorized to payout material to a servo driven straightener feeder. The coil reel is equipped with side guide rollers, powered indexing, powered mandrel expansion and dual hold downs for the pinnacle of safety. Above right, Press feed line with 20,000 lb. coil reel, precision coil straightener and high performance servo roll feed.
