ServoMax^© Zig-Zag Servo Feeds

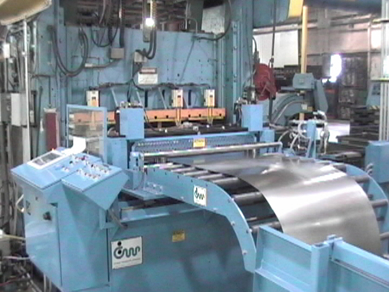

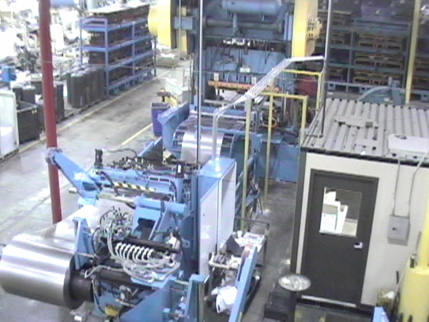

CWP^© Zig-Zag Servo Press Feeds offer dramatic productivity advantages in stagger feeding. Stagger feeding parts in a Zig-Zag Press Feed System can boost productivity and provide up to 22 % material savings. CWP^© Zig-Zag Servo Feed controls are operator friendly and automatically calculate and set up all machine parameters quickly and accurately. Servomax^© Zig-Zag Servo Feeds provide fast, easy set-up in a single or dual axis format. The control automatically calculates the optimum movement in each axis and the feed can simultaneously or sequentially deliver the material in X-Y movement. 2 or 3 out pattern capability is standard with up to 6 out pattern optional.

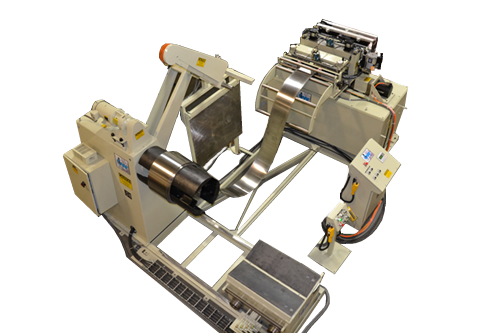

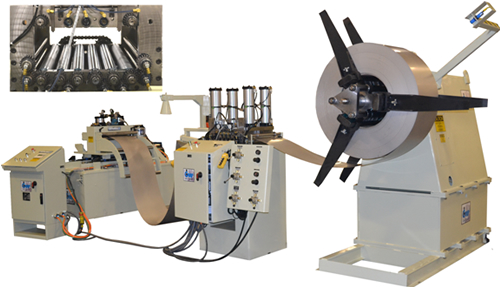

The Zig Zag or Stagger Servofeed is driven by an AC Servomotor through a precision gear train while the lateral travel of the feed and material is powered by a combination AC Servomotor and linear ball screw. The ServoMatic^© and ServoMax^© Servo Press Feeds can be press mounted or Cabinet mounted. The SMX H and H6 Servo Roll Feeds are cabinet mounted.
