Coil Cars
Coil Loading Cars |
|
|
Coil Reel or uncoiler loading is quick and efficient with a CWP Coil Loading Car. CWP© manufactures 2 distinct types of coil car, the popular V-nest and the low profile "L" style. Both the V-nest and the L style coil load cars feature a rugged steel weldment chassis with flanged wheels for guided traverse on rails and are traversed by a high torque hydraulic motor. Elevation of the coil is accomplished by hydraulic cylinders and a scissor mechanism on the V-nest coil loading cars. While direct acting hydraulic cylinders and a guide rail assembly are utilized on the L style for coil elevation. |

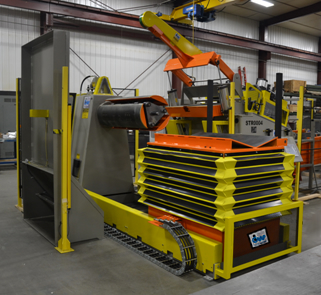

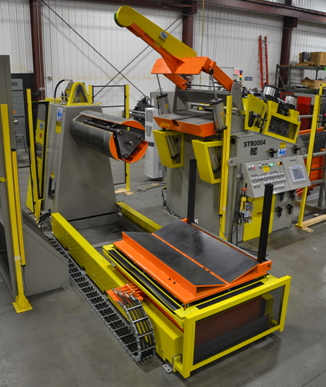

30,000LB. Coil Load Car shown in raised position above and lowered position

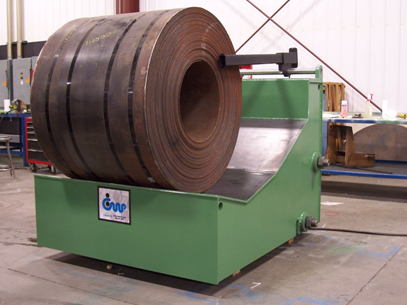

25,000LB Coil Load Car with 180° rotation

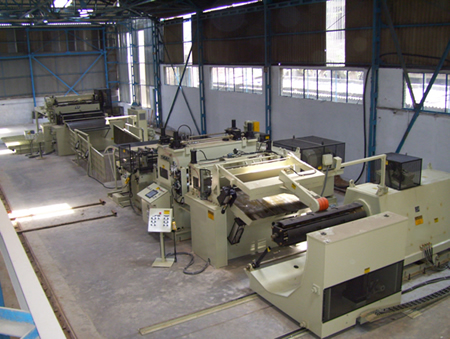

72” Cut To Length system with 40,000LB Coil Loading Car, Uncoiler and B&K© Leveler
| V-Nest Coil Loading Cars Specifications | ||
| Model | Coil Capacity | Lift |
| 10036CLC> | 10,000 | 16 |
| 20042CLC | 20,000 | 16 |
| 30054CLC | 30,000 | 24 |
| 40054CLC | 40,000 | 24 |
| 50060CLC | 50,000 | 24 |
| 24” lift and rotating top optional | ||
L Style Coil Load Car

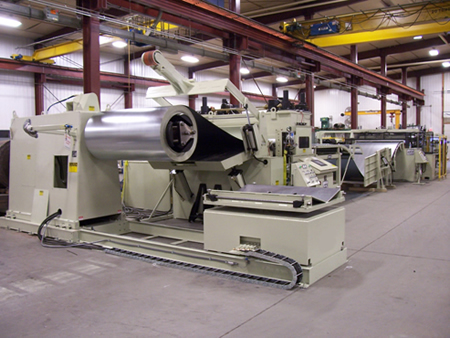

72” Cut To Length system with 66,000LB Coil Loading Car, Uncoiler, B&K Leveler, 4-Roll Servo Roll Feed, High Speed Mechanical Shear and direct Drop Servo Stacker.
| L Style Coil Loading Cars | ||
| Model | Coil Capacity | Lift |
| 400L-CLC | 40,000 | 30 |
| 500L-CLC | 50,000 | 30 |
| 660L-CLC | 66,000> | 30 |
